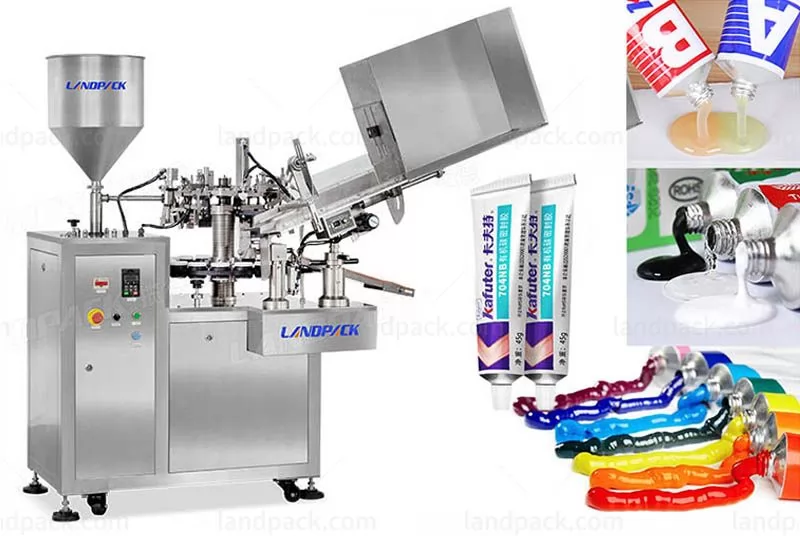

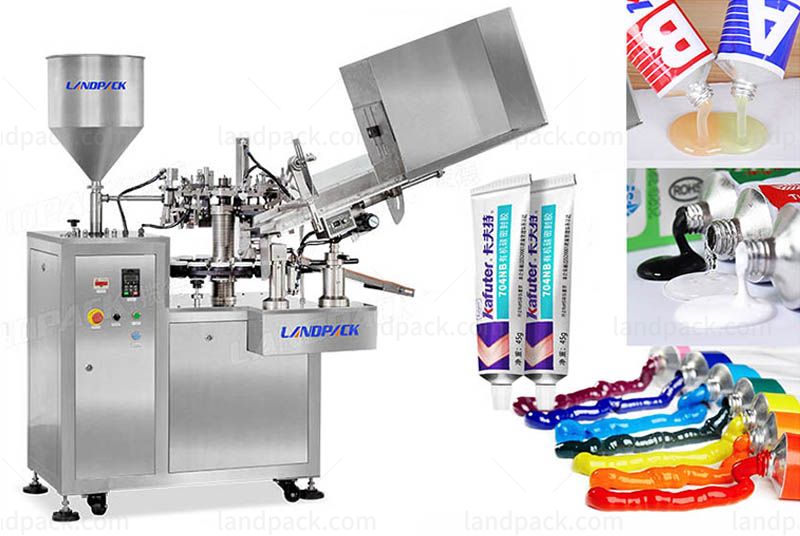

Application:
This tube packging machine is mainly used for for the quantitative filling and sealing for metal hose packaging materials, and widely used the filling and sealing in medicine,daily chemical, cosmetic, food, chemical and other industries,such as ointment, adhesive, AB glue, epoxy glue, skin cream, hair dye, shoe polish, toothpaste and other liquid or paste materials.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Samples:
High-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine.
The surface panel is made of Stainless steel panel, with beautiful appearance and durable lifetime.

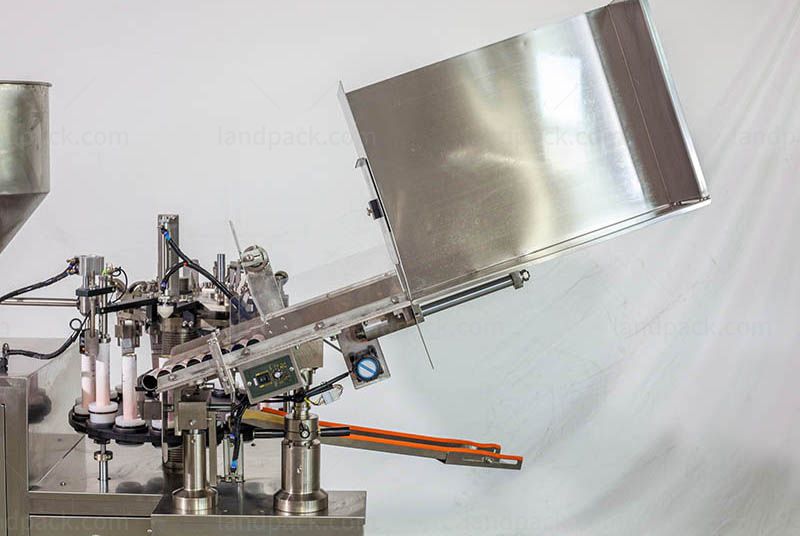

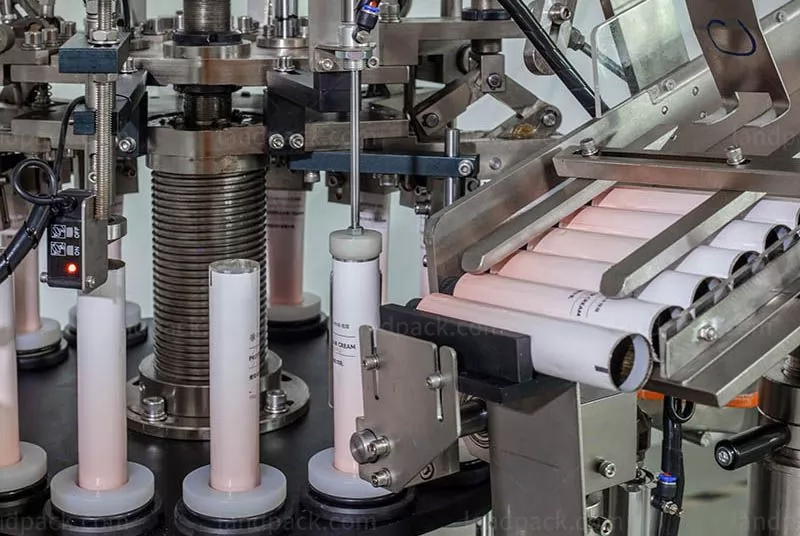

16 stations using the mechanical transmission to achieve automatic indexing, automatic tube feeding.

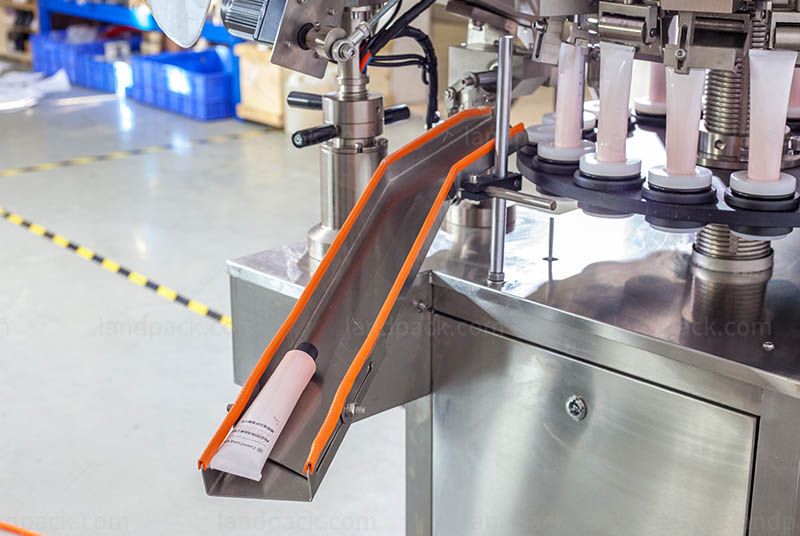

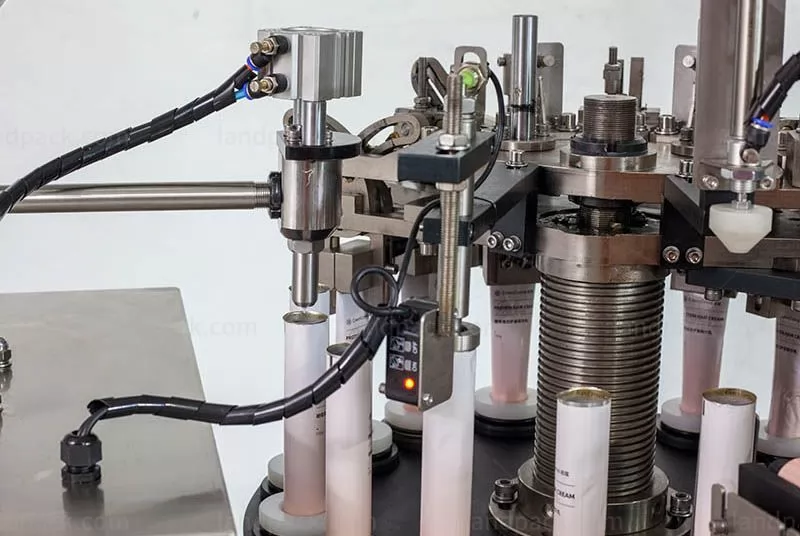

Automatic light positioning device is optional by customer’s need. Photoelectric detection to check whether the tube is available, automatical measurement, autometic filling when the tube is available, and then two-way and four-fold sealing, and finally the finished product exit.
| Model | XL-60L | XL-60F |
| Tube Material | Metal tube, Aluminum tube | Plastic tube, Composite tube |
| Tube Diameter | Φ10 - Φ42 | Φ10 - Φ60 |
| Tube Length | 50-250 (Customizable) | 50-250 (Customizable) |
| Filling Capacity | 5-500ml/pieces (Adjustable) | 5-500ml/pieces (Adjustable) |
| Filling Accuracy | ≤ ±0.5% | ≤ ±0.5% |
| Speed (r/min) | 3-10 | 2.5-7 |
| Production Capacity (units/min) | 30-60 | 30-60 |
| Compressed Air | 0.55-0.65mpa | 0.55-0.65mpa |
| Motor Power | 2kw (380V/220V 50Hz) | 2kw (380V/220V 50Hz) |
| Heat Sealing Power | 3kw | 3kw |
| Dimensions (mm) | 2500 × 1020 × 1980 | 2500 × 1020 × 1980 |
| Main Machine Weight (kg) | 1100 | 1100 |
After receiving your inquiry,We will send you the quotation as soon as possible.
