Application:
It can filling and sealing the batching for ointment material and widely used in packing products of pharmaceutical, food and chemical industry such as AB adhesive, epoxy glue, chloroprene and pigment etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging samples:
1. Low cost, clean pollution-free and does not damage the plastic tube.

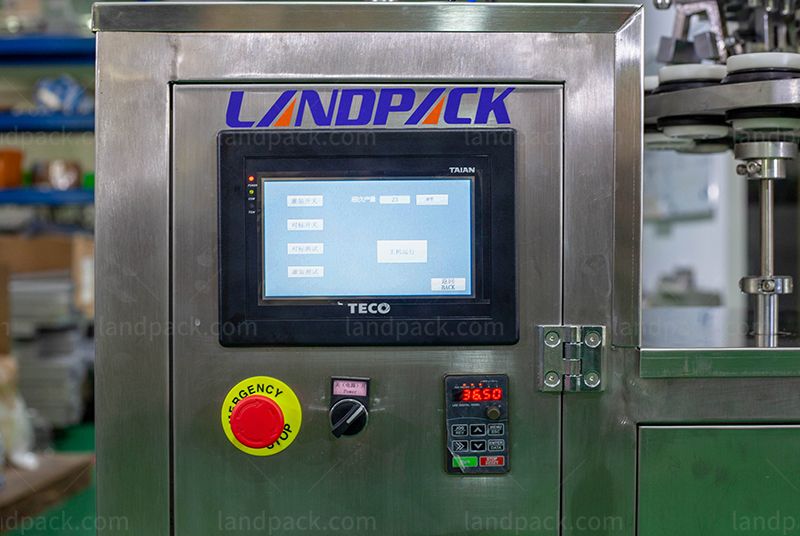

2. Adopting PLC controller, easy to operate, auto-protecting system can avoid the damage caused by improper operation.
3. Can adjust filling volume easily.

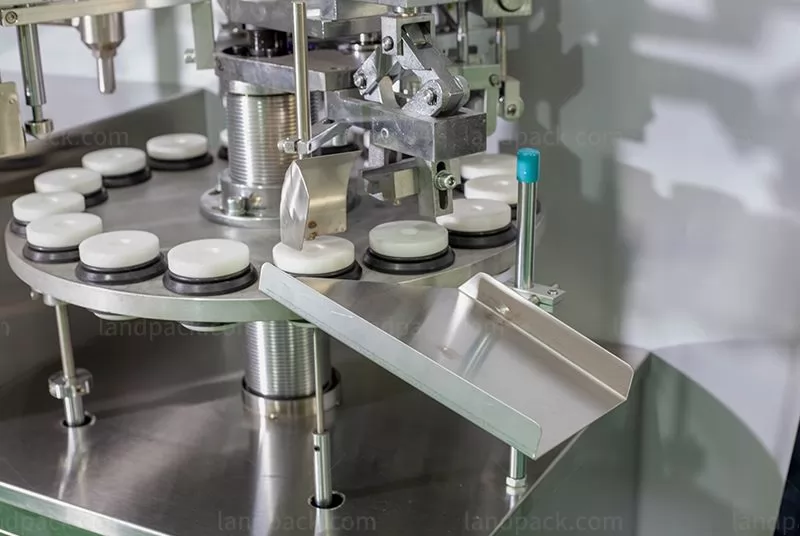

4. Auto unloading, can unload finished goods to conveyor.
5. Stepper motor is used for orientation, the speed can be adjusted to improve the accuracy.
6. Auto tube feeding ,Filling, Orientate, Sealing, Print code, Cutting.
| Model | XL-60L | XL-60F |
| Tube Material | Metal tube, Aluminum tube | Plastic tube, Composite tube |
| Tube Diameter | Φ10 - Φ42 | Φ10 - Φ60 |
| Tube Length | 50-250 (Customizable) | 50-250 (Customizable) |
| Filling Capacity | 5-500ml/pieces (Adjustable) | 5-500ml/pieces (Adjustable) |
| Filling Accuracy | ≤ ±0.5% | ≤ ±0.5% |
| Speed (r/min) | 3-10 | 2.5-7 |
| Production Capacity (units/min) | 30-60 | 30-60 |
| Compressed Air | 0.55-0.65mpa | 0.55-0.65mpa |
| Motor Power | 2kw (380V/220V 50Hz) | 2kw (380V/220V 50Hz) |
| Heat Sealing Power | 3kw | 3kw |
| Dimensions (mm) | 2500 × 1020 × 1980 | 2500 × 1020 × 1980 |
| Main Machine Weight (kg) | 1100 | 1100 |
After receiving your inquiry,We will send you the quotation as soon as possible.
