Application:
It applies to fill all kinds of semi-viscous and viscous products into metal tubes such as glue, hand cream, ointment, paint, toothpaste, cosmetics, food industry products, and other soft tube sealing.
Optional Supporting Devices:
Three-dimensional packaging machine, cartoning machine, sealing and cutting machine, heat shrinking machine, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Demos:

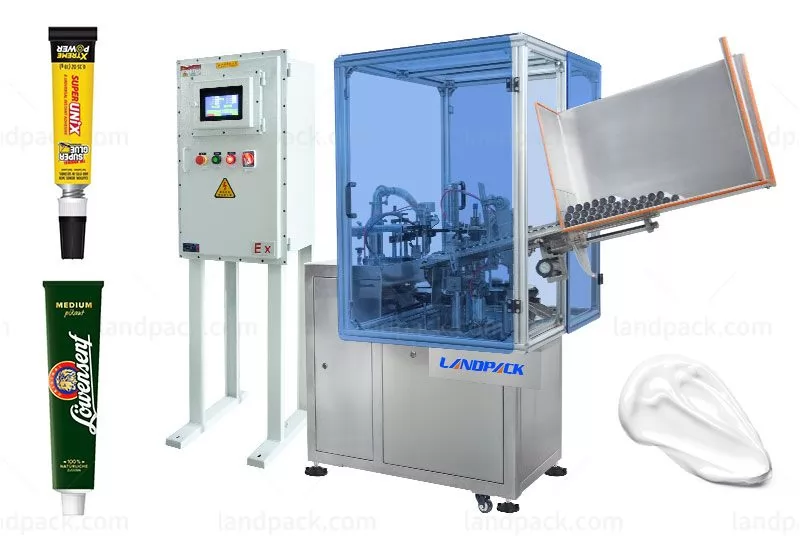

1. Explosion-Proof Electric Box: Ensures safe operation with flammable and explosive products.

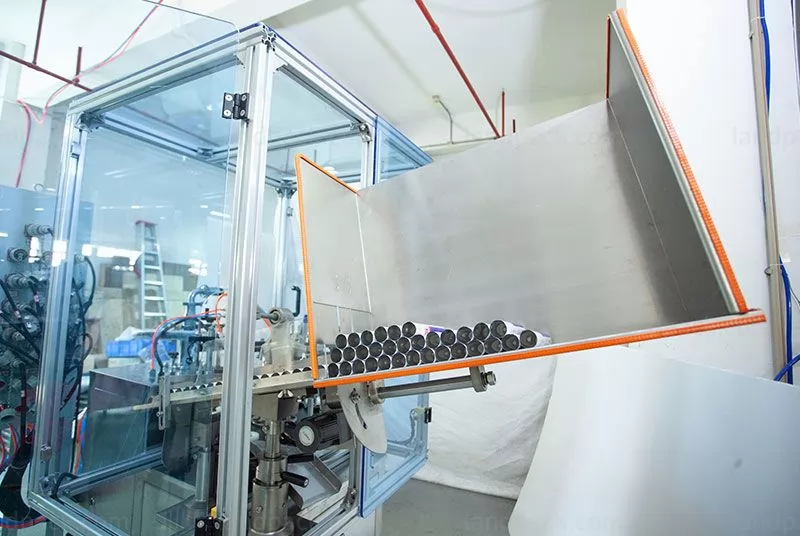

2. Automatic Tube Loading: Reduces labor costs and increases efficiency.
3. Three-Fold Sealing: Provides excellent end sealing to prevent material deterioration.
Workflow:

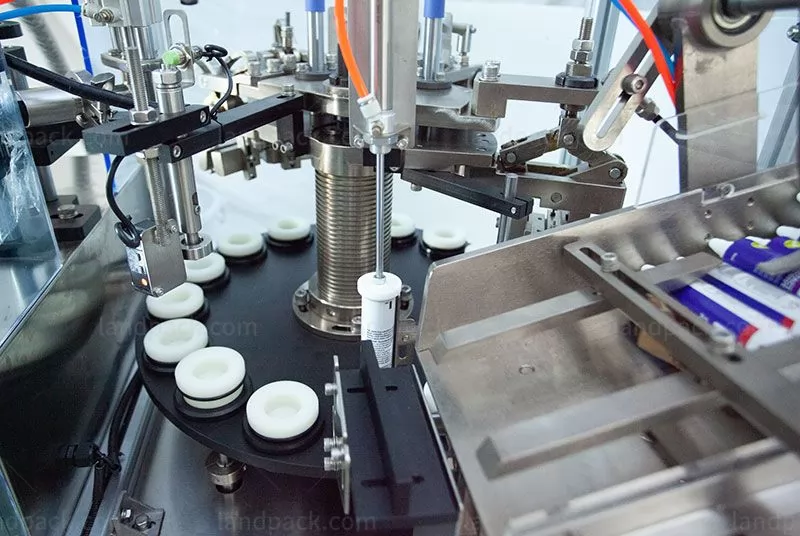

1. Auto tube hopper to feed tubes one by one
2. Fixing tube tightly with a pusher
3. Positioning the tube in the correct direction

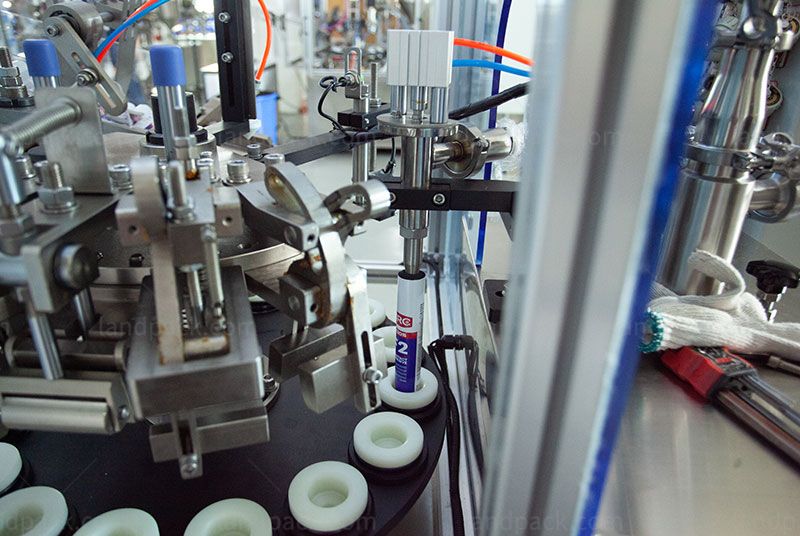

4. Filling by piston pump
5. Pressing & Folding station
6. Coding
7. Outlet
| Model | XL-60L | XL-60F |
| Tube Material | Metal tube, Aluminum tube | Plastic tube, Composite tube |
| Tube Diameter | Φ10 - Φ42 | Φ10 - Φ60 |
| Tube Length | 50-250 (Customizable) | 50-250 (Customizable) |
| Filling Capacity | 5-500ml/pieces (Adjustable) | 5-500ml/pieces (Adjustable) |
| Filling Accuracy | ≤ ±0.5% | ≤ ±0.5% |
| Speed (r/min) | 3-10 | 2.5-7 |
| Production Capacity (units/min) | 30-60 | 30-60 |
| Compressed Air | 0.55-0.65mpa | 0.55-0.65mpa |
| Motor Power | 2kw (380V/220V 50Hz) | 2kw (380V/220V 50Hz) |
| Heat Sealing Power | 3kw | 3kw |
| Dimensions (mm) | 2500 × 1020 × 1980 | 2500 × 1020 × 1980 |
| Main Machine Weight (kg) | 1100 | 1100 |
After receiving your inquiry,We will send you the quotation as soon as possible.
