1.The material contact parts are made of stainless steel SUS304; SUS316 is optional.
2.The connection of the various is used the quick-change device, which is easy to disassemble and clean.
3.high-quality pneumatic components.
4.The height of conveyor table can be adjusted easily by a hand wheel for different tubes.

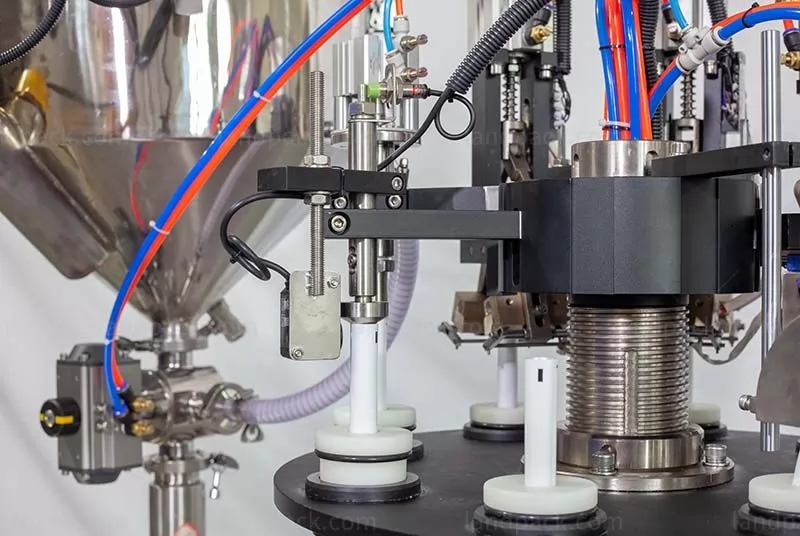

5.Pistol plunger filling system processed by digital controlled lathe to guarantee a high filling precision of 1%. And the volume is adjustable.
6.The filling speed can be adjusted freely a VFD.
7.Production counter could be displayed on the control cabinet.

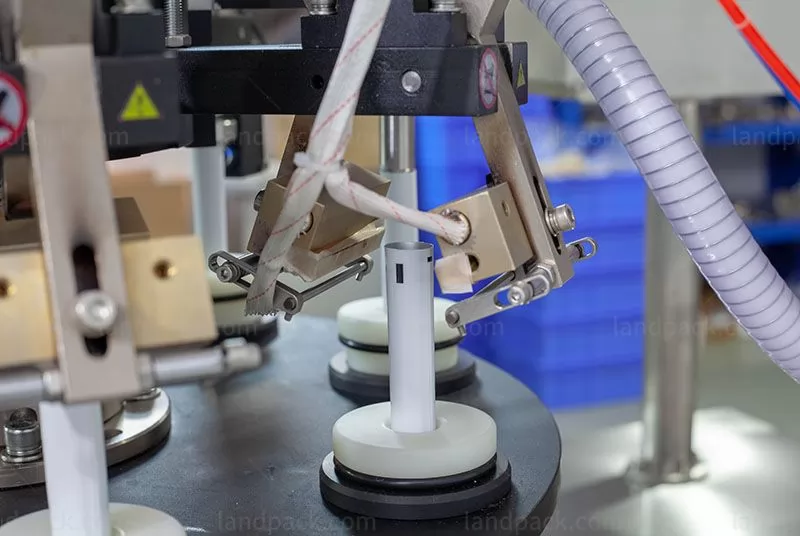

8.Inner heating and out heating technology, a stable and good looking sealing is got.
Application:

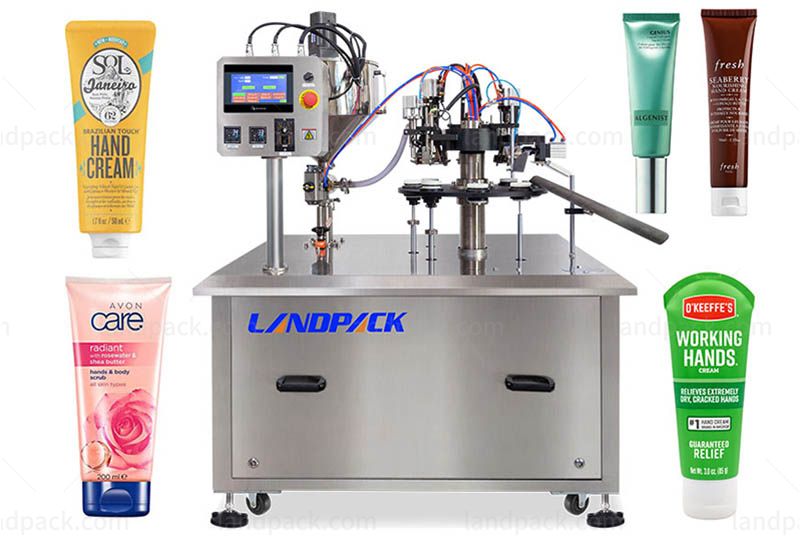

It can fill and seal the plastic tubes and plastic-aluminum laminated tubes. It is widely used in the cosmetic, cream, lotion, medicine, lubricants, adhesive and shoe polish, food industries.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Demos:
| Model | XL-60L | XL-60F |
| Tube Material | Metal tube, Aluminum tube | Plastic tube, Composite tube |
| Tube Diameter | Φ10 - Φ42 | Φ10 - Φ60 |
| Tube Length | 50-250 (Customizable) | 50-250 (Customizable) |
| Filling Capacity | 5-500ml/pieces (Adjustable) | 5-500ml/pieces (Adjustable) |
| Filling Accuracy | ≤ ±0.5% | ≤ ±0.5% |
| Speed (r/min) | 3-10 | 2.5-7 |
| Production Capacity (units/min) | 30-60 | 30-60 |
| Compressed Air | 0.55-0.65mpa | 0.55-0.65mpa |
| Motor Power | 2kw (380V/220V 50Hz) | 2kw (380V/220V 50Hz) |
| Heat Sealing Power | 3kw | 3kw |
| Dimensions (mm) | 2500 × 1020 × 1980 | 2500 × 1020 × 1980 |
| Main Machine Weight (kg) | 1100 | 1100 |
After receiving your inquiry,We will send you the quotation as soon as possible.
